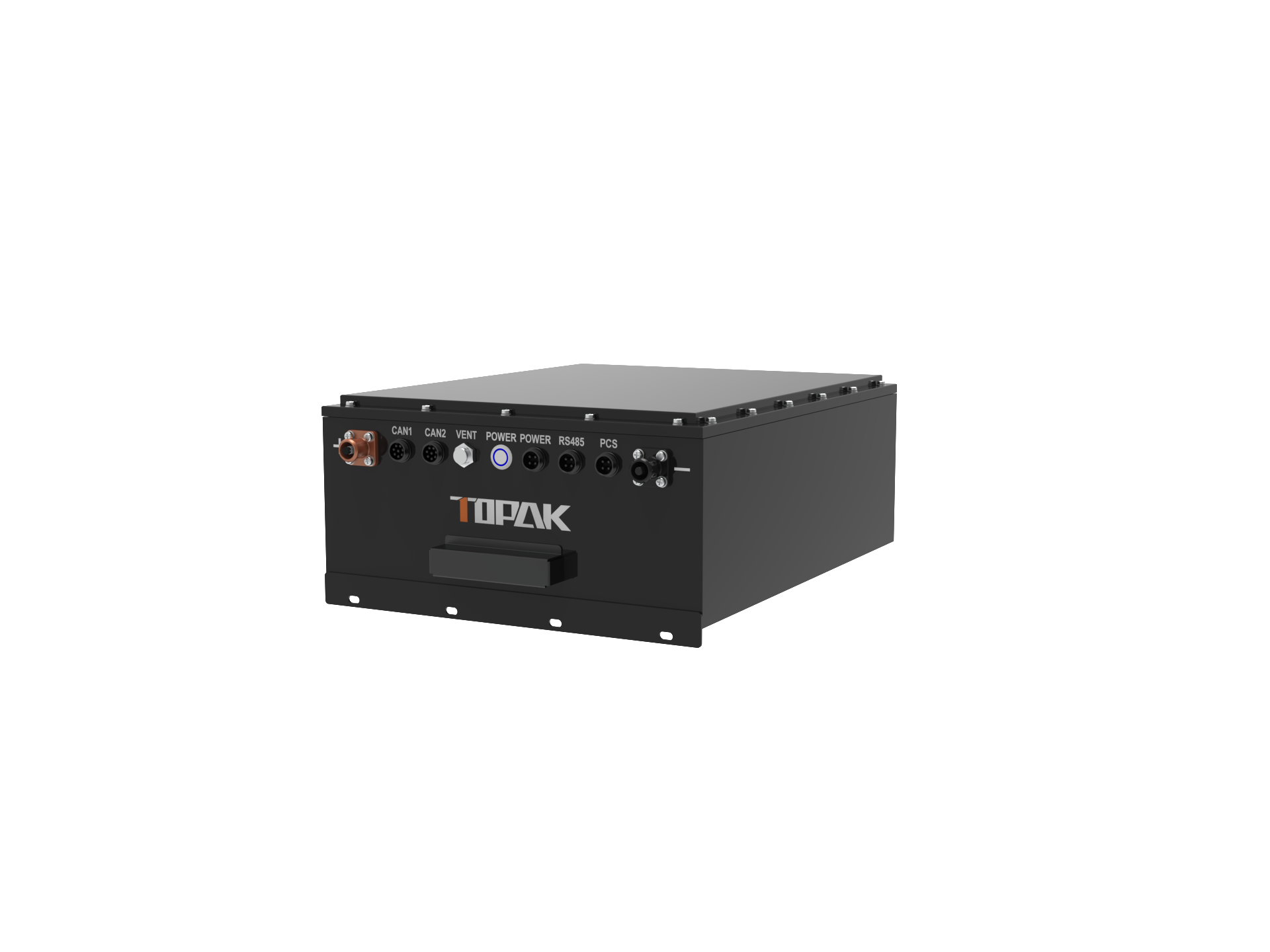

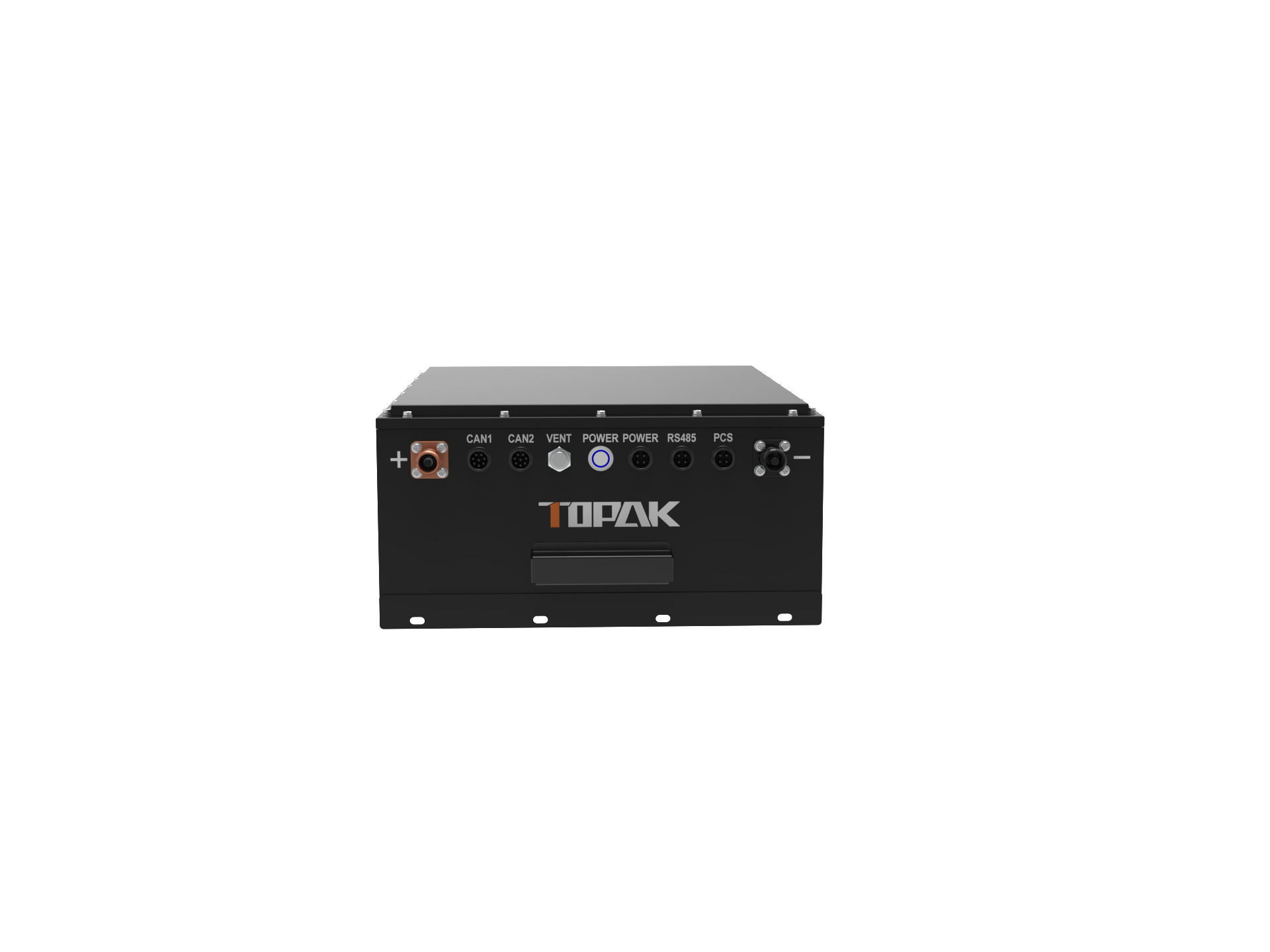

TOPAK-A977 76.8V108Ah
| Specifications Nominal Voltage (V): |
76.8V
|
| Nominal Capacity(Ah): |
108Ah
|
| Rated Energy (Wh): |
8294.4Wh(8.2944KWh)
|
| Maximum Charging Voltage (V): |
93.6V
|
| Maximum Charging Current (A): |
15A
|
| Maximum Continuous Discharge Current(A): |
300A
|
| Maximum Peak Discharge Current @2s (A): | 350A |
| Maximum Load Power (W): |
23000W
|
| Discharge Cut-OffVoltage (v): |
60V
|
| Cell Model: |
IFP20100140A-27Ah
|
| Cell Combination: |
24S4P
|
| Cycle Life: |
2000 room temperature (80%)
|
| Protection Rating: | IP67 |
|
Product specification number:
|
YF-05-000409
|
| Approximate Weight (kg): |
Approx. 76kg
|
|
Dimension(mm)：
|
683*423*230
|
| Application Areas: |
MOTORBOATS, BAMBOO RAFTS
|
